PowerPlasma 52i

  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • WHAT'S INCLUDED
  • OPTIONS

PP52i

  • Lightweight
  • digital_display
  • igbt_equipped
  • 1_phase

Notify me when this product is available:

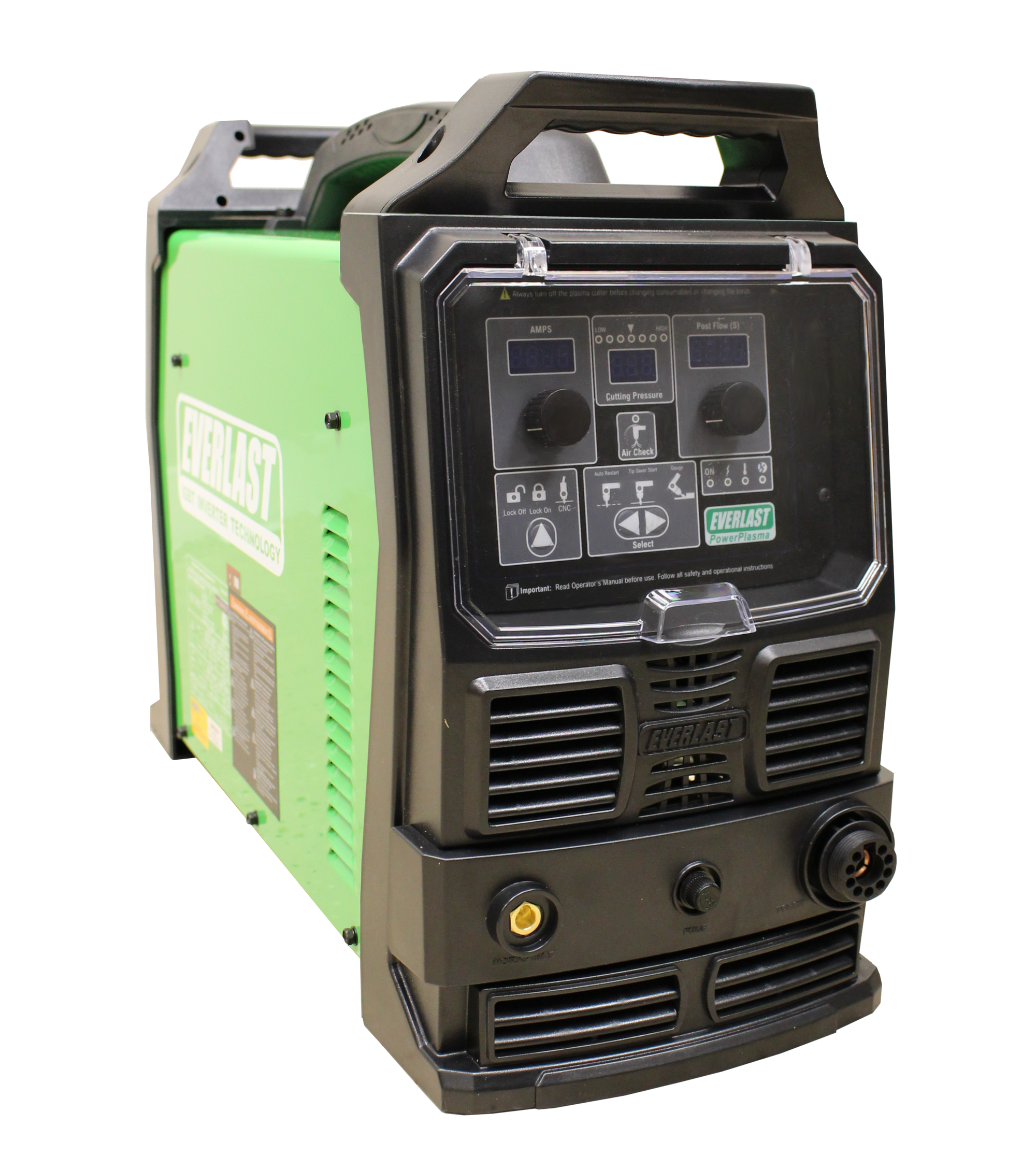

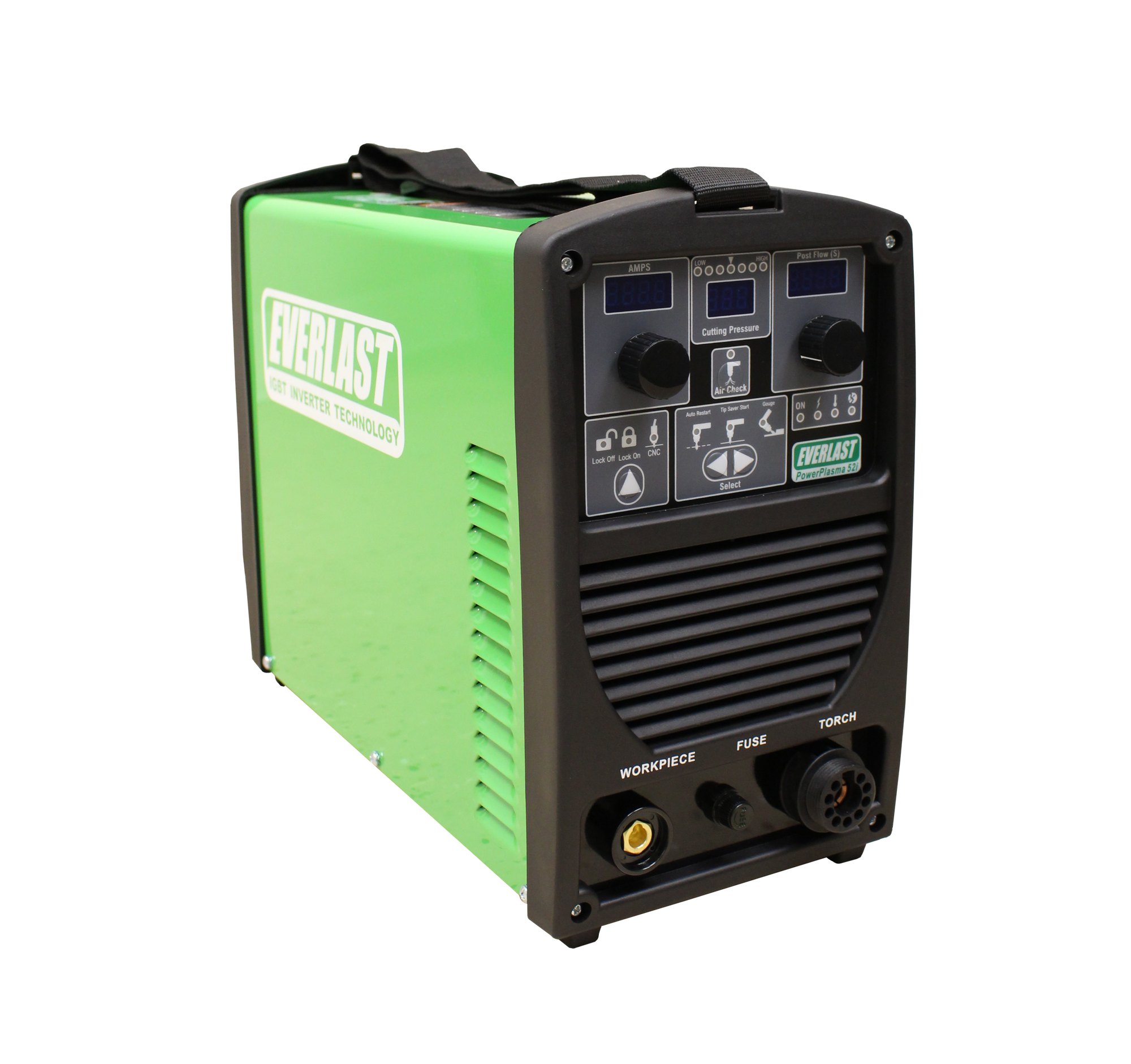

For customers looking for a compact, but reliable plasma cutter, the PowerPlasma 52i offers the latest in IGBT inverter design technology.  The PowerPlasma 52i is the successor to the popular and long running PowerPlasma 50S series which brought affordability and performance to the plasma cutter market place and gave customers a real choice.  Nothing has changed in that respect about the new PowerPlasma 52i.

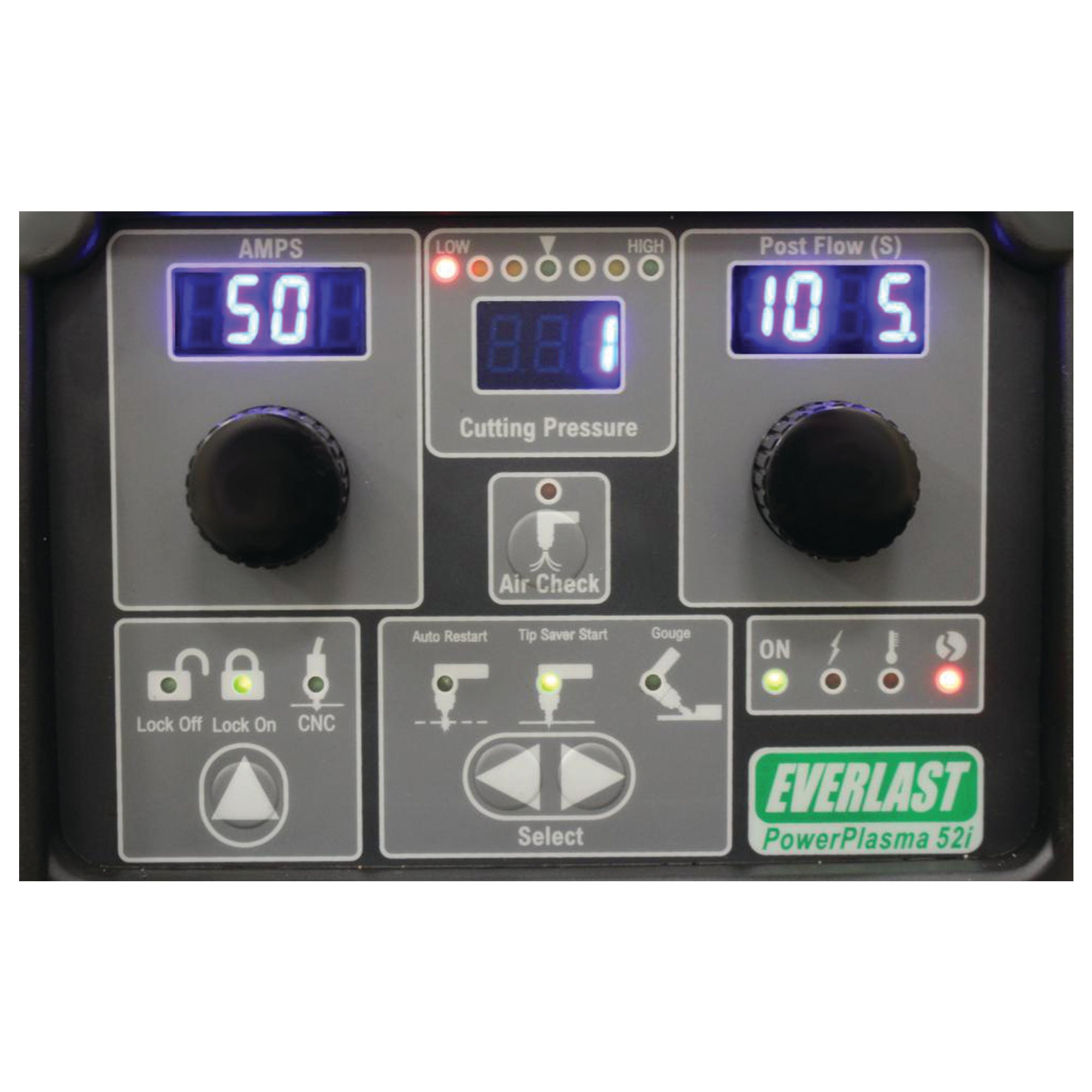

The new PowerPlasma 52i has been completely redesigned though, offering full digital design, inside and out.  This has reduced circuit complexity, and improved reliability.    But it has also brought some new features which improve upon the solid platform of the PowerPlasma Series.   The new addition of the air-pressure guide system, offers digital display of actual air-pressure along with a LED system that guides the operator to the best choice of air pressure for the mode being used.

This new setup also features a digital control over Post-Flow and gives the user the ability to see and set the actual post flow time with a digital readout. It can be adjusted for different duty and job requirements. The Post-Flow can be easily increased to preserve consumable life for those long, time consuming cuts.  Or if you are doing rapid, short, or intermittent cuts, the Post-Flow time can be adjusted lower by just a quick twist of the dial.

The large digital displays are super bright, with improved visibility in bright conditions, making them easy to read at a distance.  Adding to the already long list of improvements, the PowerPlasma 52i, now has a gouge feature and a separate mode for CNC use.  The blow-back torch design features two pilot arc modes, one with continuous re-light for cutting expanded metal and for conditions where continuity is not ideal, and the other which features a tip saver function that limits pilot arc on time to preserve consumable life.

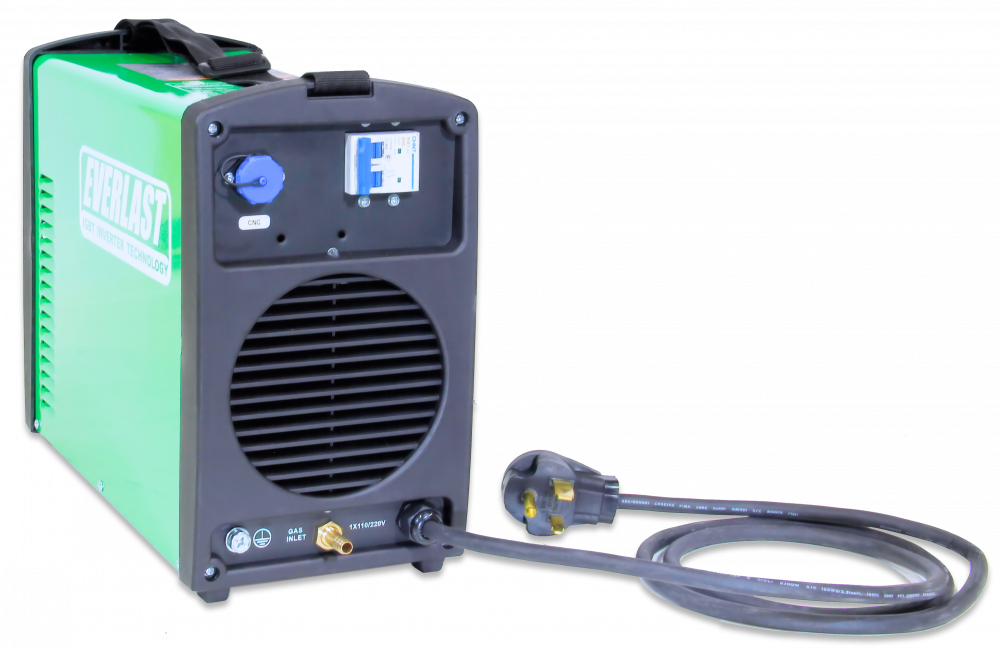

PLEASE NOTE: This machine is fitted with a 15A plug. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

Manufactured and compliant with IEC/AS 60974.10, CE Guaranteeing your electrical safety and performance. INDUSTRIAL USE ONLY



Download PDF Manual HERE

Out of stock

FEATURES

  • Dual Voltage 120/240V for maximum portability
  • Adjustable Post-Flow timer extends consumable and torch life
  • Large, Super bright digital displays for Amps, Air Pressure, and Post Flow
  • Digital Air Pressure Setting Guide adapts programming for different cutting modes
  • Separate Gouge and CNC modes.
  • Euro style "Central" quick connect torch adapter
  • Improved Consumable life
  • Features the Italian designed "back striking" iPT 60 torch with improved cutting capacity and improved consumable life
  • Inexpensive consumables can usually be bought locally
  • 60% duty cycle is fit for commercial use
  • Clean cuts and less bevel with the iPT 60 torch and new digitally controlled cutting arc.
  • Self-Diagnosing mode (Error Code)
  • Consumables in Place Indicator.
  • Pilot arc tip saver feature limits pilot arc activity to 3 seconds. Continuous Pilot arc mode is standard as well.
  • Can be used with 8500 watt clean power generators (less than 5% total harmonic distortion)

SPECIFICATIONS

  • Type: IGBT
  • Voltage/phase: Dual Voltage 120/240 1 Phase
  • Output Amp/Volt Range: @240V: 20A/88V-50A/100V
  • OCV: 200V
  • Max Inrush ( I1MAX ) Amps: @240V: 35.8A
  • Maximum Rated (I1EFF ) Input Amps: @240V: 27.9A
  • Duty Cycle At Rated Amps/Volts: @240V: 60% @ 50A/100V
  • Arc Start Type: Blow Back (Piston type)
  • PilotArc: Yes
  • Torch Type: Italian designed iPT 60
  • CNC Interface Port: Yes
  • Adjustable Post Flow Timer: Yes
  • Gouging: Not Recommended
  • Recommended Cutting Air Pressure: 72-75 psi
  • Recommended Compressor Capacity: 5.0 cfm or better with 25 gallon tank
  • OK-to-Cut Indicator/Low Air pressure safety: Yes

Minimum/Maximum:

  • Up to 1/2" daily use @ 15-20 ipm (240V)
  • Up to 3/4" clean cut @ 8-12 ipm (240V)
  • Up to 15/16" severance cut @ 3-5 ipm (240V)
  • Up to 1/8" daily use @ 15 to 20 ipm (120V)
  • Up to 3/16" clean cut @ 8 to 12 ipm (120V)
  • Up to 5/16" severance cut @ 3-5 ipm (120V)
  • Max. Pierce 3/8" (240V)
  • Max Pierce 3/16" (120V)
  • Minimum practical cut 24-28 gauge with standad cutting tips



Plasma cutting capacity is affected by several factors.  Ideal cutting conditions require dry air, new consumables, proper air pressure etc.   Quality of cut depends upon consumable orifice size, standoff height,  and travel speed.  Reduce consumable orifice size for best quality cuts on thin metals.   Units are shipped with starter kit of consumables designed for 40-50 amps cutting range. Minimum cutting gauge is virtually unlimited, but kerf will be too wide if standard cutting tips are used. For best results, use a smaller diameter orifice for lighter gauges.

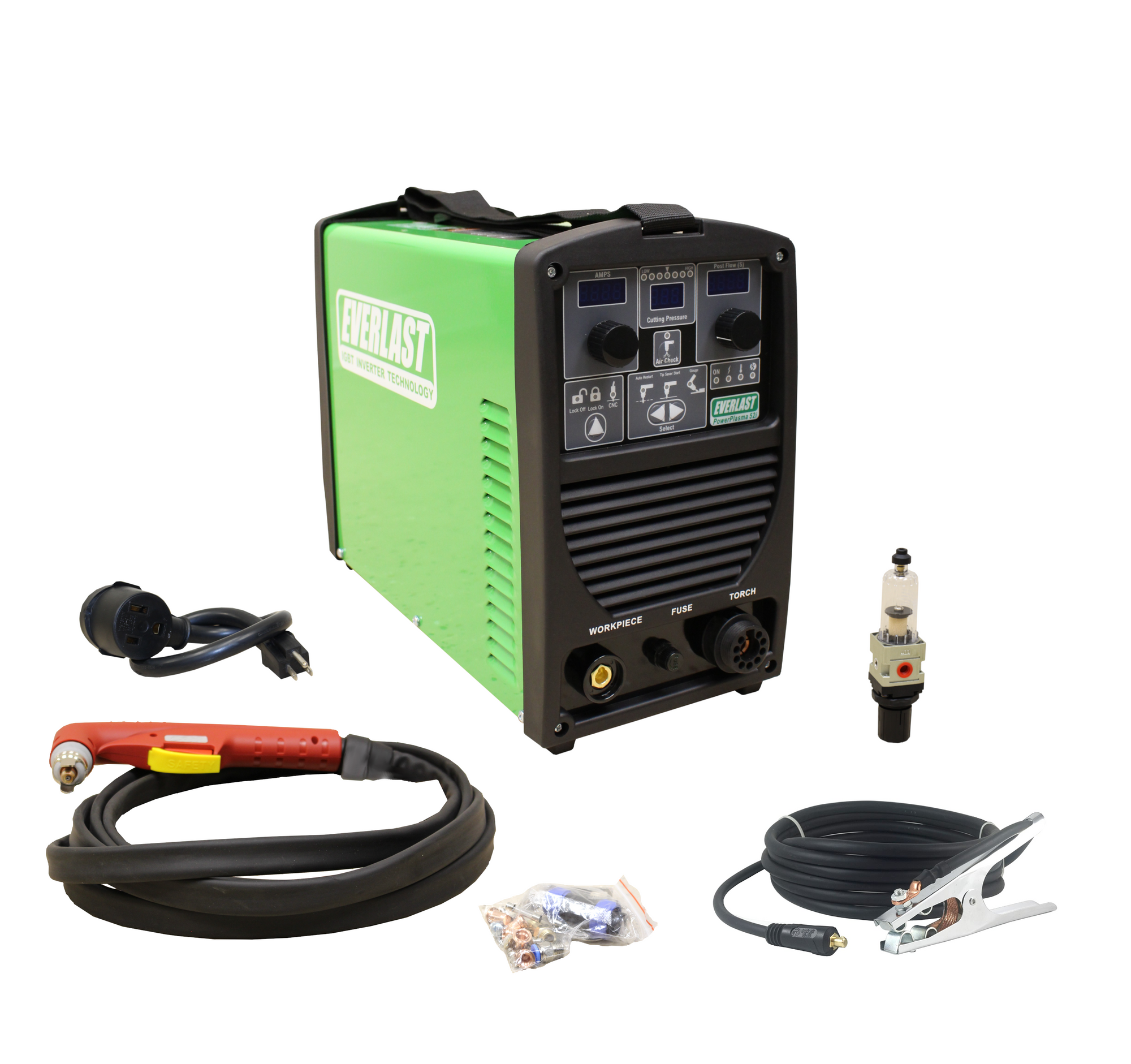

WHAT'S INCLUDED

  • iPT 60 hand held torch 14ft. with Euro quick-connect central connector
  • Consumable starter kit
  • Water trap (this is not an air dryer)
  • Work clamp
  • 120V/240V pigtail adapter

OPTIONS

  • Power Cart 250
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • iPT-60 Plasma Torch, 25 ft
  • iPT-60 Plasma Consumables Kits
  • iPT-60M Plasma Machine Torch (CNC)

NOTES

  • When using the CNC port, with a plasma table, the unit should be limited to 40 amps which is the 100% duty cycle level of the machine if it is to be used continuously.
  • A separate air dryer must be provided by the customer to prevent torch damage, and excessive consumable wear.
  • The unit includes a regulator/water trap, but is not designed to remove all water or moisture.
  • When used with a generator, the generator must be certified by its manufacturer to produce "clean" power (5% or less THD).  Use a generator rated for 8500 surge watts if used on 240V. For 120V, a generator with a minimum of 4500 watts should be used.
  • For use with 120V, the cutting tip (nozzle) must be changed to a smaller diameter nozzle for proper operation under 40 amps.  Lowering air pressure will destabilize the arc.
